Visitor Counting

Visitor Counting – Cross Point 3D Sensors

3D90 vs 3D180 • Zones • Dwell Time • Analytics

Two models — same powerful visitor insights, with different coverage and installation ranges. Choose 3D90 for compact areas and lower ceilings, or 3D180 for larger monitored areas and higher installation heights.

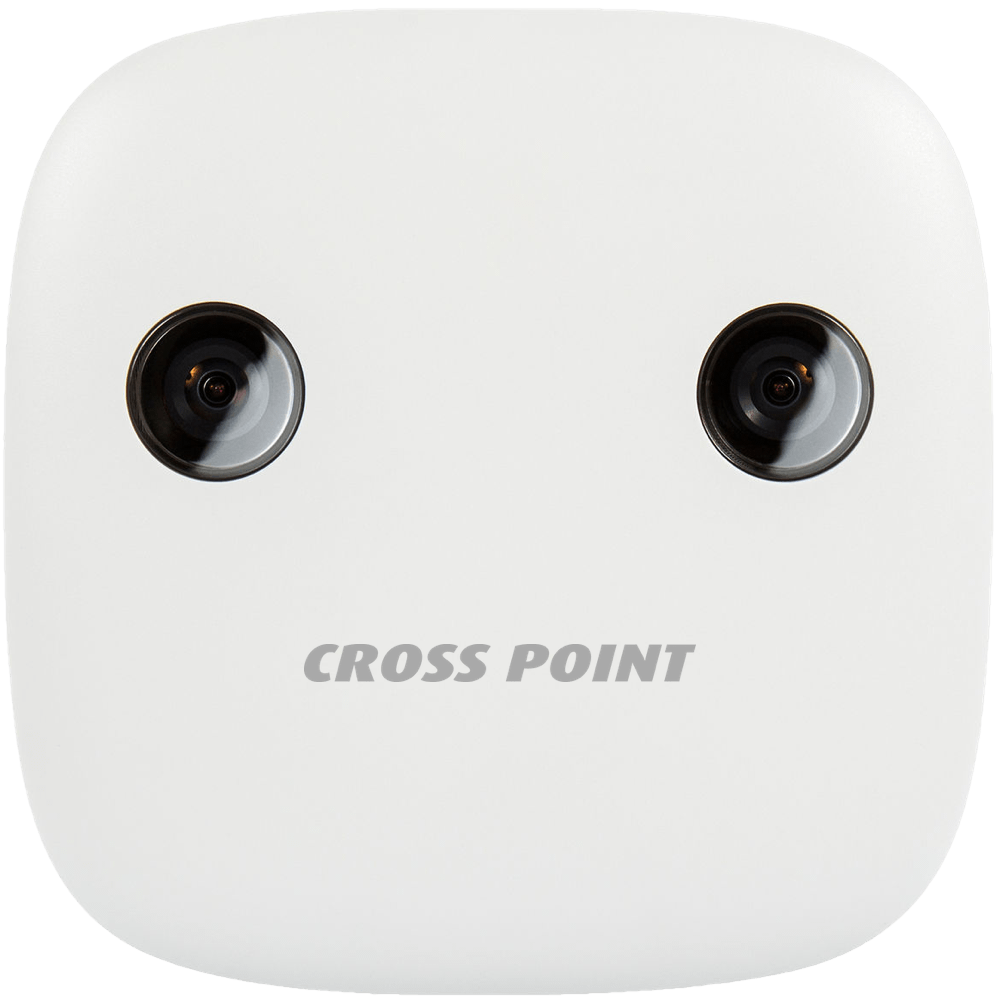

Cross Point 3D90
3D90

Cross Point Sensor

Cross Point 3D90

Compact coverage • Lower ceiling installs

  • Counting lines: up to 10
  • Zones: up to 8
  • PoE: Power over Ethernet
  • Install height: approx. 2.0–3.5 m (leaflet)
  • Monitored area: up to 4×5 m (leaflet)
Zones + dwell time ≥98% accuracy
Contact us → 3D90 View on Cross Point →

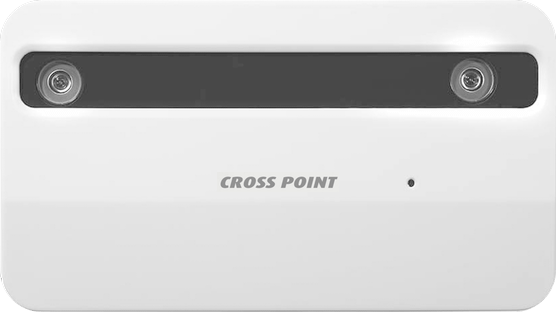

Cross Point 3D180
3D180

Cross Point Sensor

Cross Point 3D180

Larger coverage • Higher ceiling installs

  • Counting lines: up to 10
  • Zones: up to 8
  • PoE: Power over Ethernet
  • Install height: approx. 3.0–6.0 m (leaflet)
  • Monitored area: up to 8×8 m (leaflet)
Best for large areas ≥98% accuracy
Contact us → 3D180 View on Cross Point →

What’s different (3D90 vs 3D180)

Quick comparison overview
Coverage

3D90: up to 4×5 m
3D180: up to 8×8 m

Install height

3D90: 2.0–3.5 m
3D180: 3.0–6.0 m

Build & protection

3D90: IP30, alu+plastics
3D180: IP40, aluminum

Size (W/H/D)

3D90: 160×160×42 mm
3D180: 237×99×37 mm

Temperature

3D90: 0°C to +55°C
3D180: -25°C to +70°C

What’s the same

10 lines • 8 zones • Dwell time
≥98% accuracy • PoE • CrossCONNECT

Note: the 3D90 product page also mentions operation up to 4.0 m height and up to 5×6 m coverage, which may reflect a newer scenario or configuration compared to the leaflet.
